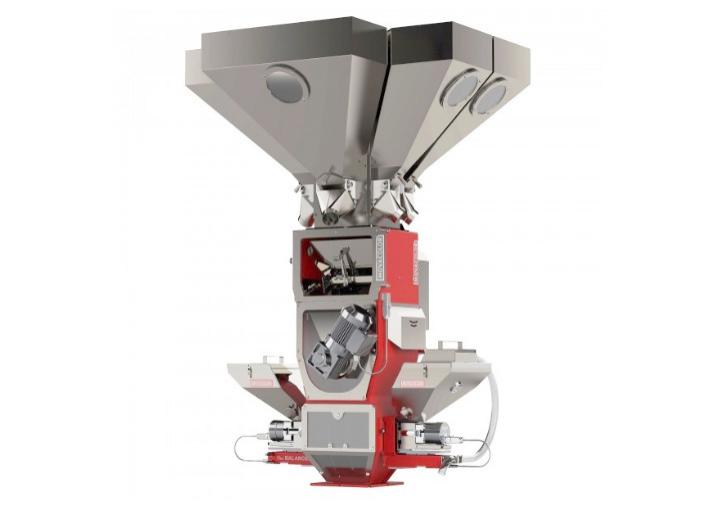

The MCHybrid 200* is a unique dosing concept that combines two technologies into one system: batch blending and in-line dosing.

The main materials or regrinds are mixed in an extreme compact gravimetric batch blender. Because the system only blends the main materials, the blending speed is high and therefore the batch blender remains small.

The additives are dosed gravimetrically in-line, directly on the throat of the injection molding machine or extruder.

By using these two blending and dosing technologies in one machine, you are able to control the main materials in any given ratio and at the same time dose additives at low percentages with unequalled accuracy.

The MCHybrid 200 is available for capacities up to 1,000 kg/h with 2-8 blending components and up to maximum 14 in-line dosing components.

If requested, the blender itself can also be used without the in-line dosing units. In that case the capacity and the accuracy will reduce compared to the MCHybrid concept.

* patent pending

Features MCHybrid 200

• Fully gravimetric
• 8” full color touch screen with user-friendly interface
• Able to store up to 1,000 recipes
• Capacity max. 1,000 kg/h
• 2-8 main components and max. 14 in-line additives
• Extremely compact
• Able to handle powders and liquids in one system
• Quick and easy change of additives
• Option of weighing mixing bin (real time throughput measurement)
• Industry 4.0 ready

Benefits MCHybrid 200

• Compact design
  Because only the main components are blended gravimetrically, a high capacity can be achieved with a relatively small batch blender.
• Different materials handled
  The in-line dosing of the additives allows easy color change plus the option to use additives that cannot be handled with a regular batch blender, such as powders or liquids.
• Extremely accurate
  As the additives are dosed in-line, no segregation can take place which prevents color variations.
